两用焊接机特点介绍：

一.YAG激光传输焊接一键启动，转换方便，5米光纤管、灵活运用，特制手持枪，耐高温，性能稳定、聚焦点（120MM）

二.定位点、红光、Y口、方便快捷、适合各种五金工艺，钣金，厨具、广告字等等之类。

Features of dual-purpose welding machine:

1. YAG laser transmission welding one key start, conversion convenience, 5 meters fiber optic tube, flexible use, special handheld gun, high temperature resistance, stable performance, 120MM

2. Location point, red light, Y mouth, convenient and fast, suitable for all kinds of hardware technology, sheet metal, kitchen utensils, advertisement words and so on

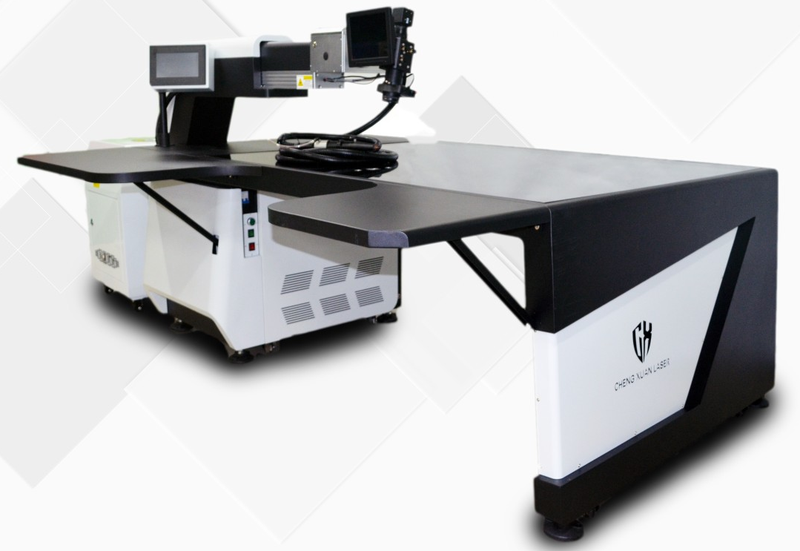

台面焊接：

三、针对广告字行特制

※大幅面连体工作台面（方便于大小字操作便捷）

※适合材料：不锈钢、镀锌板（铁皮）、铁板、钛金等多种金属

※热影响区域大小，工件表面不会有变形，精准度高，成本低，无需耗材

※焊接牢固表面无突起，无需抛光打磨，省时省力，美观有效率

Mesa welding:

3、for advertising line special large format working table (convenient in the size of word operation) suitable for materials: stainless steel, galvanized sheet (iron), iron plate, Titanium and gold and other metal heat affect the size of the area, workpiece surface deformation, high accuracy, low cost, no need for consumables to weld solid surface without protruding, no polishing, save time, labor, beauty and efficiency

机器性能：

1. 激光晶体：采用国内顶尖从事光学晶体军工学院生产的7*145的优质激光棒、每根带有LQC检念合格证书。具有 高增益、激光阈值低、激光功率高、焊点漂亮、活力稳定、热传导性和热冲击性好的特征。

2. 激光电源：采用8个优质品牌的激光电源和进口IGBT双极晶体管、使电源供应脉冲氙灯电流恒定、高频率连续焊接稳定、不易衰弱，寿命长。

3. 大功率恒温制冷水箱、带冷暖自动恒温功能、控制精准度高，德国EBM电子风扇作为冷凝部分配套、风量大、噪音低和过滤装置，有效过滤水中污渍杂质。

4. 控制器：独立高清触摸控制屏，控制脉冲电流等、设定参数将会自动保存功能

5. 适配CCD显微监控器，焊接效果清晰直观

6. 特制移动光路，伸缩自如，加长聚焦镜头F=200MM

7. 操作简单：男女皆可上手、高效率、开机即用、焊接速度是传统工艺的5倍

8. 及环保又安全：源自德国技术，无噪音、无污染、无辐射、24小时不断工作

9. 创新结构、稳定扎实、操作便捷、人性化、美观大气 。

Machine performance:

1. Laser crystals: using the top optical crystal military institute production of high-quality laser rods, each with LQC inspection certificate. It has the characteristics of high gain, low laser threshold, high laser power, beautiful solder joint, stable vitality, good thermal conductivity and thermal impact.

2. Laser power supply: using 8 high quality brand laser power supply and imported IGBT bipolar transistor, the power supply pulse xenon lamp current constant, high frequency continuous welding stability, not easy to debilitate, long life.

3. High power constant temperature refrigerating water tank, with the function of automatic constant temperature, high precision of control, German EBM electronic fan as a part of condensing matching, large volume of air, low noise and filter device, effectively filter contaminant impurities in water.

4. Controller: independent high-definition touch control screen, control pulse current, setting parameters will be automatically saved function

5. Suitable for CCD micro monitor, welding effect is clear and intuitionistic

6. Special mobile optical path, flexible, extended focus lens F=200MM

7. Simple operation: both men and women can use, high efficiency, start-up, welding speed is 5 times the traditional process

8. And environmental protection and safety: German technology, no noise, no pollution, no radiation, 24-hour continuous work

9. Innovative structure, stable and solid, easy to operate, humanized and beautiful

技术参数
